Downhole Tools/ (BHA)

Downhole Tools/ (BHA)

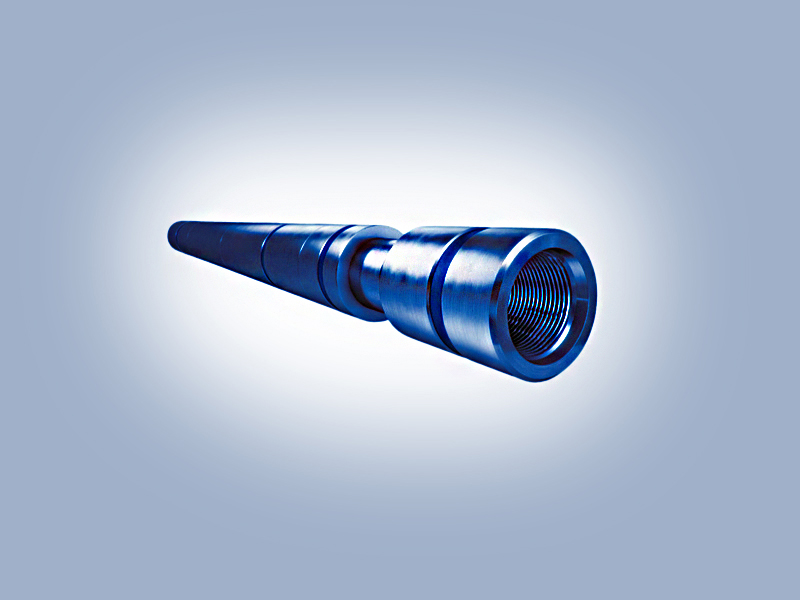

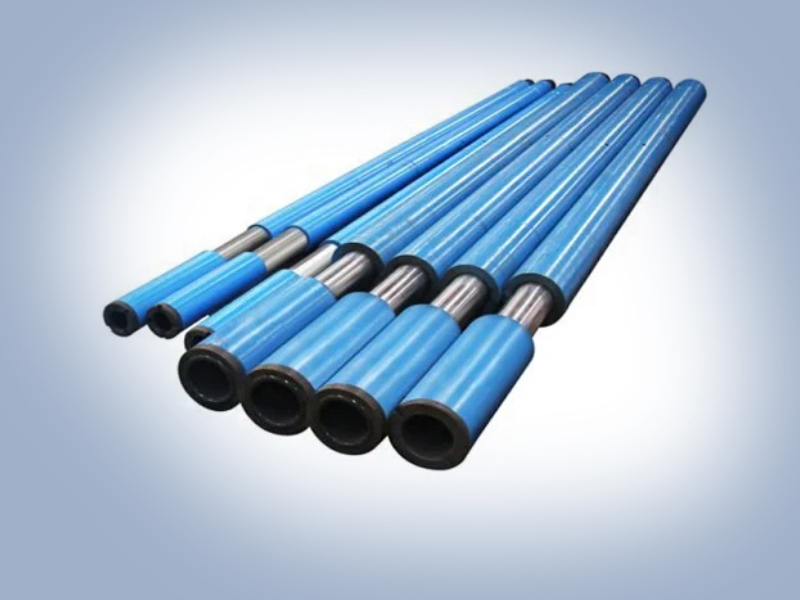

JARS

  • Automatically resets by applying string weight on the packer
  • Withstands HPHT environments
  • Controls metering
  • Provides an unlimited number of concentrated shock loads

STABILISERS

  • Three blades x 270-degree wrap
  • Longer crown lengths
  • Typically highest total flow area (TFA)
  • Most meet API SPEC stabilizer dimensional requirements
  • Hardfacing on crown and leading edges

KELLY VALVES

  • API Spec 8C tested and compliant configurations available
  • NACE trim
  • Available in a wide variety of sizes and end connections
  • Reliable, field proven, serviceable design

IBOP TOOLS

  • Complete range of tools for relieving pressure during decommissioning.
  • NACE trim.
  • Available in a wide variety of sizes and end connections.
  • Reliable, field proven, serviceable design

HOLE OPENER

  • Bladed Hole Opener
  • Security Custom Hole Openers
  • Focus on Speed & Reliability

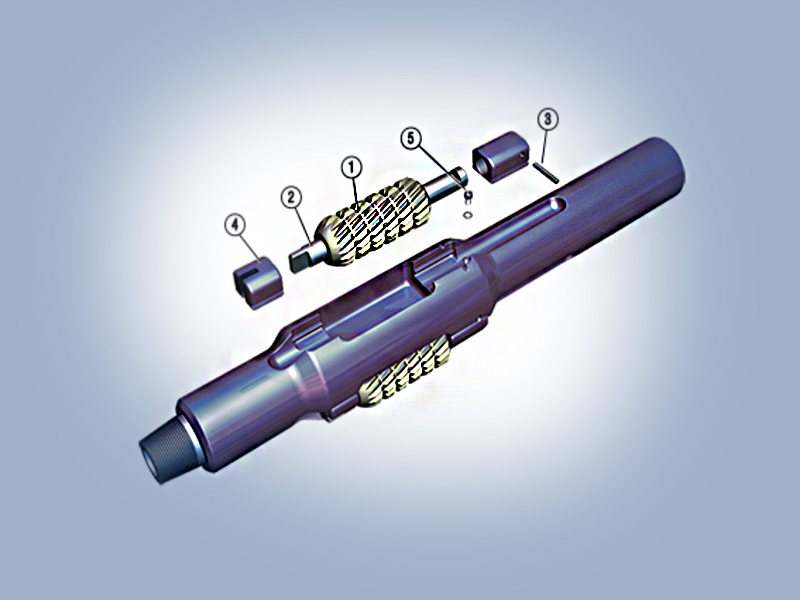

ROLLER REAMER

  • Versatile Design
  • Durable Construction
  • Field Replaceable Parts

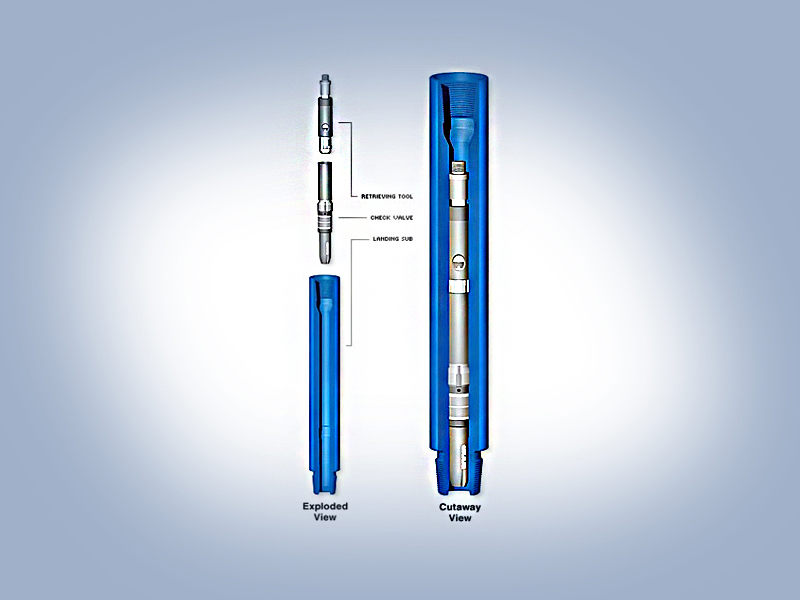

DROP IN CHECK VALVE (DICV / DART SUB)

  • Easy Maintenance
  • Connection Flexibility
  • High & Low Pressure Sealing

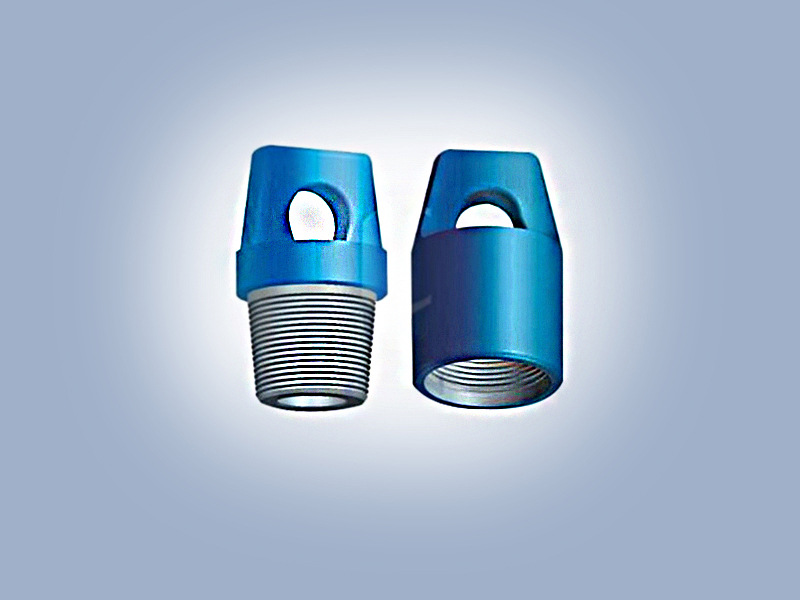

LIFTING PLUGS AND CAPS

  • A specialized tool used for lifting drilling tools in petroleum, natural gas, drilling engineering, and geological exploration.
  • It is available in two types: integral type and circular type.
  • Designed to support the safe and efficient handling of drilling tools during lifting operations

SHOCK TOOLS

  • Full range of WOB applications
  • Low bit weights with high pump pressures
  • High-temperature holes

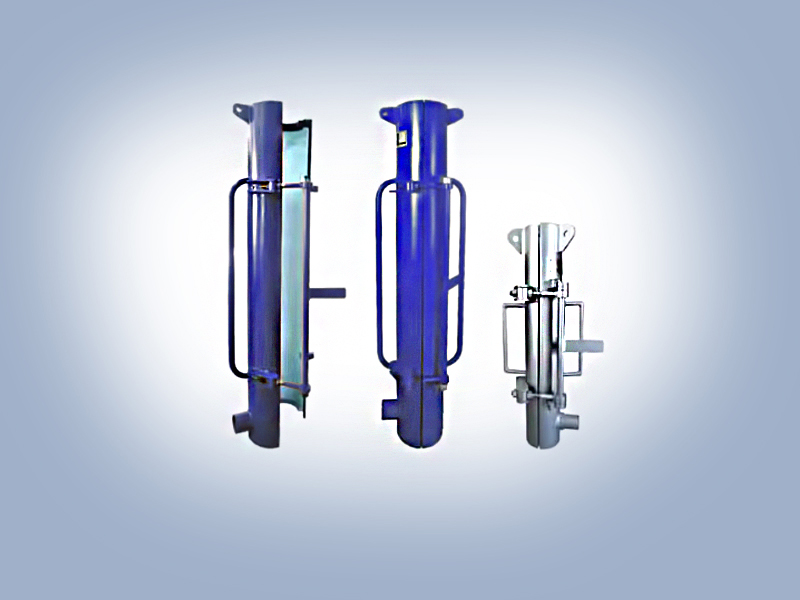

MUD BUCKETS AND ACCESSORIES

  • Able to handle wide range of stickups
  • Minimal space occupied on drill floor when parked
  • Quick replacement of mud seal
  • Quick connections on mud hose
  • Emergency stop located in control stand

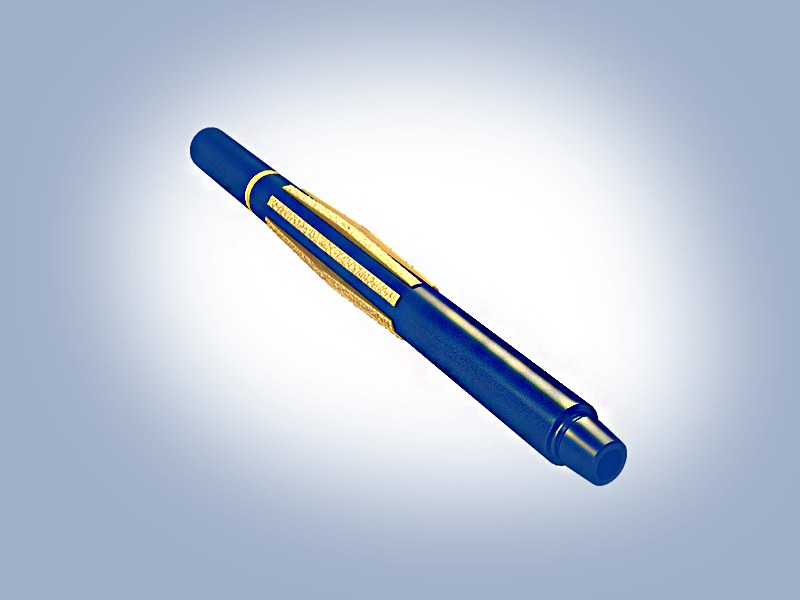

STRING MILL & WATERMELON MILL

  • Mill is designed to clean out casing and whipstock windows.
  • It features short leading and trailing angles for effective cleaning.
  • The mill is capable of clearing "bird nests" and other obstructions in the string.
  • It works while the bottom hole tool is milling.
  • Mill ensures that the milled section maintains full gauge.

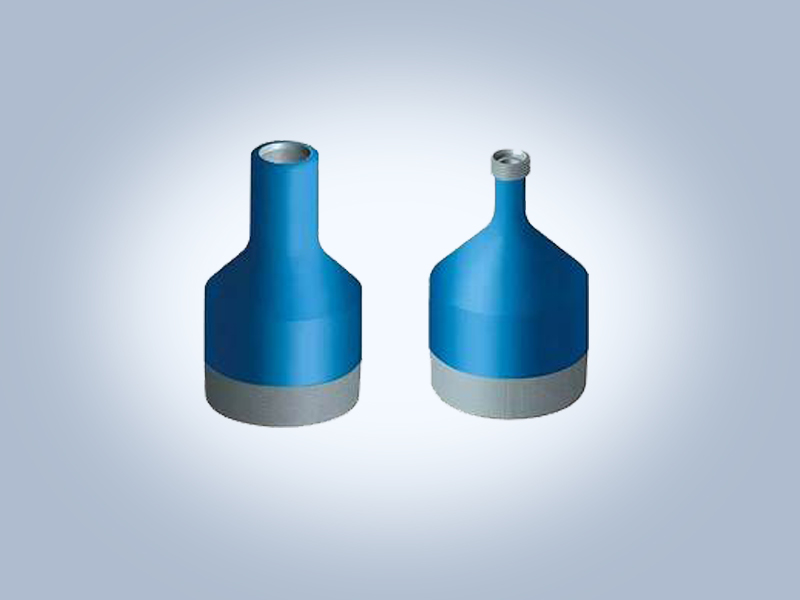

CIRCULATING SWAGE

  • Attached to the top of drill pipe or tubing.
  • Allows pumping into the well.
  • Also called a Circulation Sub.
  • Used for casing, drilling, and OCTG circulating.

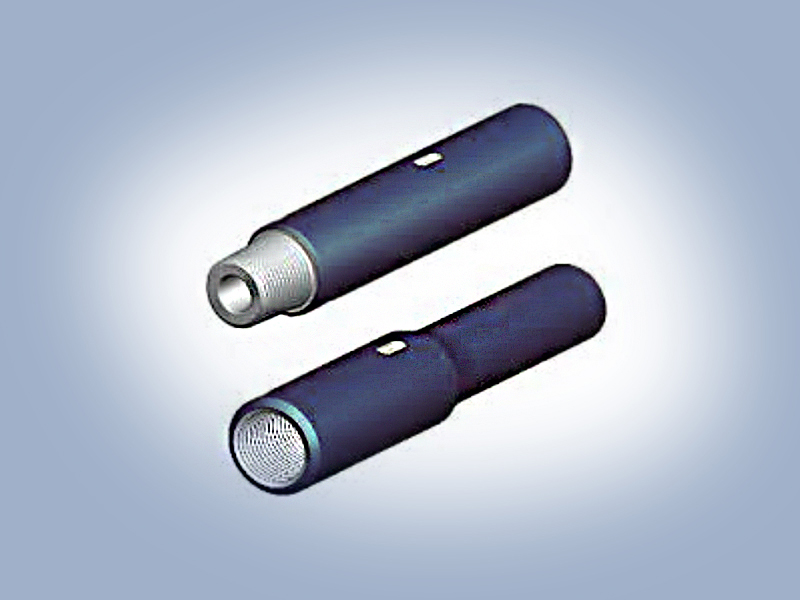

VARIOUS KIND OF SUBS

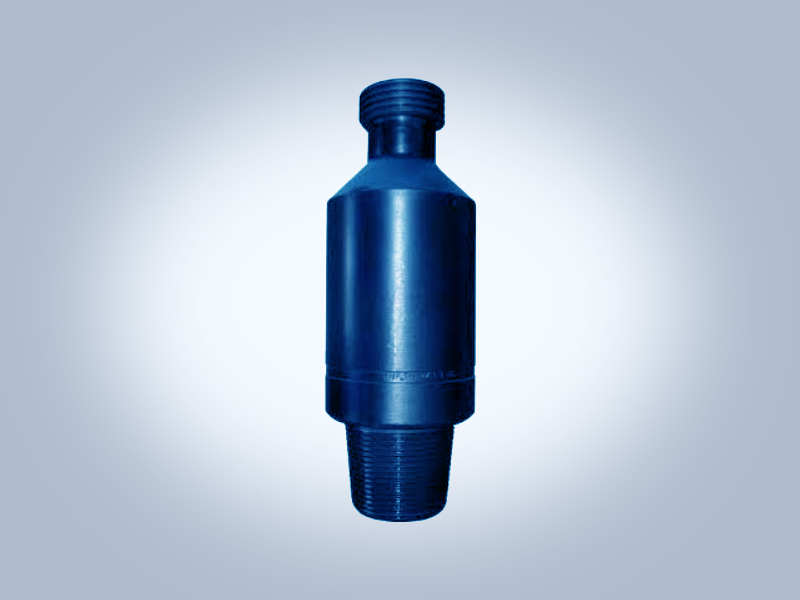

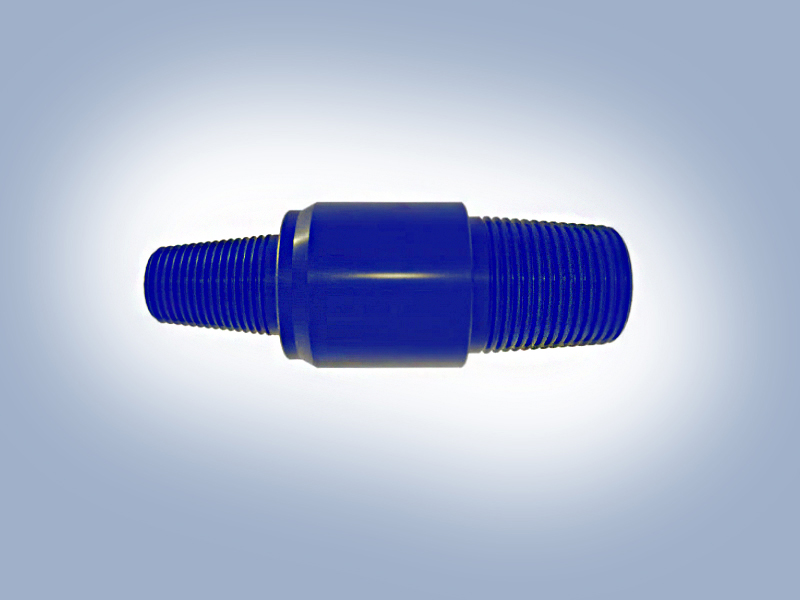

CROSSOVER SUBS

  • Crossover subs are essential for drilling operations, providing flexibility to adapt the drill string to well-specific requirements

SIDE ENTRY SUBS

  • It enables various operations, such as drilling, fishing, and wireline, through the drill pipe.
  • It allows these operations without interference from the rig's top drive unit.

REDUCED SUBS

  • Subs are used to connect the drill bit to the next piece of equipment in the Bottom Hole Assembly (BHA)

LIFTING SUBS

  • It is designed for lifting drilling tools.

SAVER SUBS

  • It is screwed onto the bottom of the kelly or top drive and onto the top of the drill string.
  • When deepening the hole and adding pipe to the drill string, the threads are unscrewed between the saver sub and the drill string.

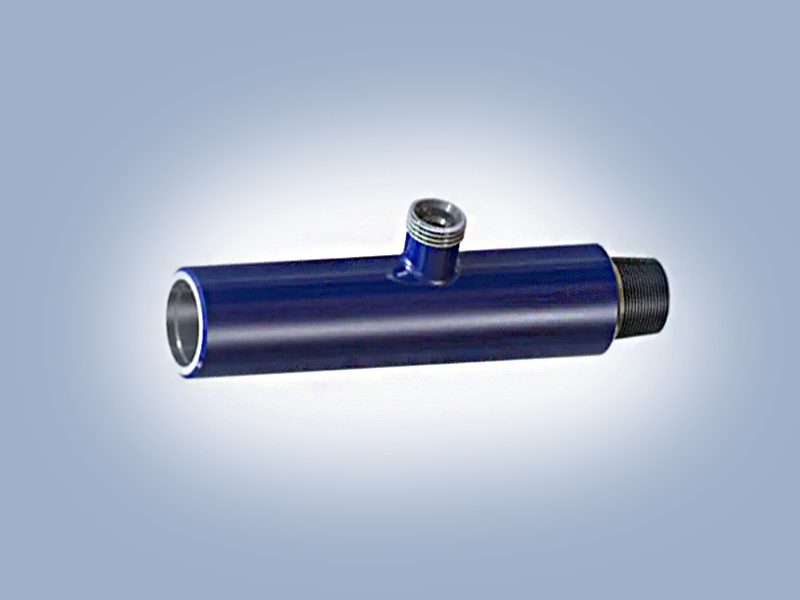

PUMP-IN SUBS

  • Allows fluid to be pumped into the drill string.
  • Fitted with a 1502 Weco® connection.
  • Connection can be on box, pin, or side of the sub.
  • Other ends have drill pipe connections.
