Fishing Tools

Fishing Tools

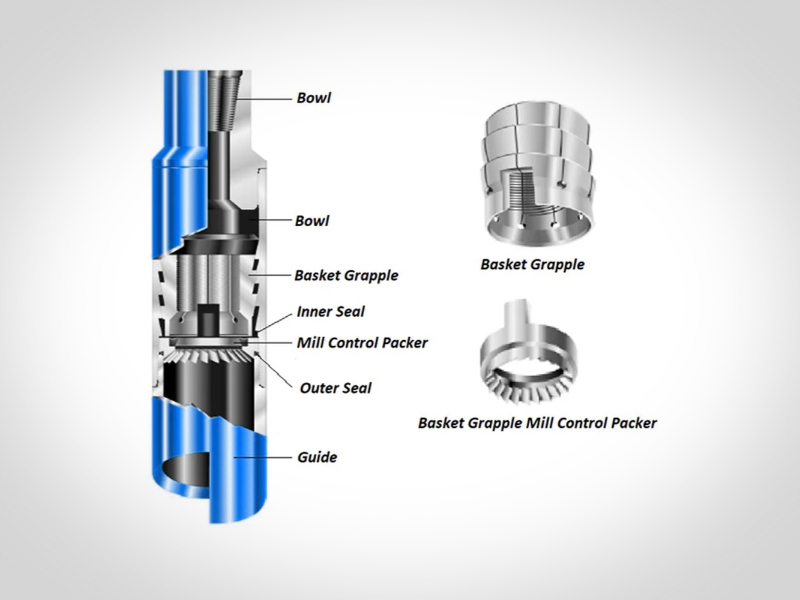

OVERSHOT AND ACCESSORIES

  • Series 150 and 70SC Releasing and Circulating Overshot retrieves tubular items from the wellbore
  • External catch fishing tool
  • Rugged, economical, and easy to use
  • Size from 2- 5/4inch to 20- 3/4inch
  • The size can be modified according to customer specifications, in compliance with API standards.

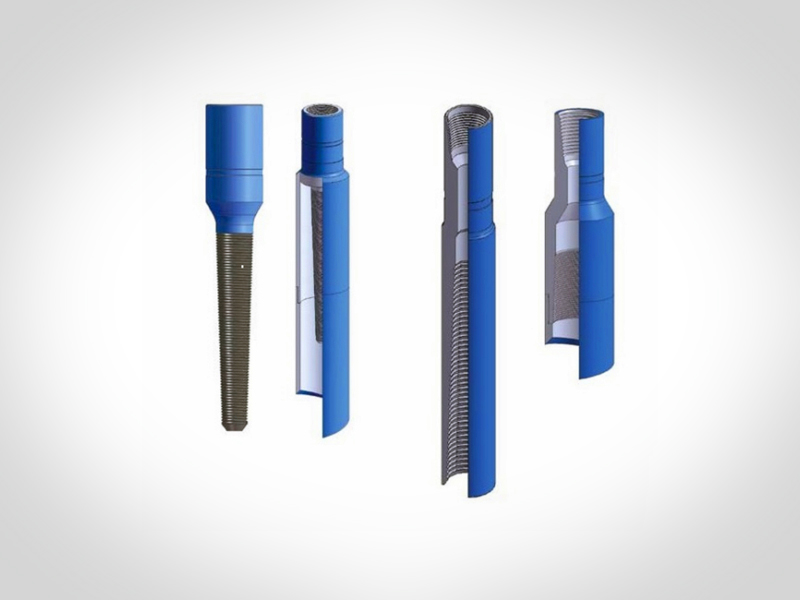

DIE COLLAR AND TAPER TAP

  • Designed to externally engage and retrieve tubular fish that cannot be rotated.
  • Die Collar is an external catch fishing tool designed to retrieve tubular members from the well bore.
  • Size from 1.66 inch to 8-⅛ inch
  • The size can be modified according to customer specifications, in compliance with API standards.

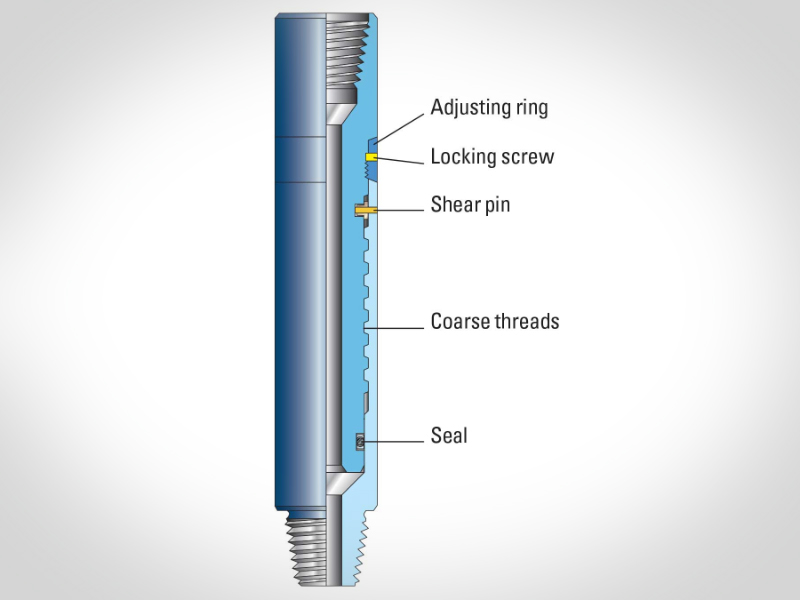

SAFETY JOINT

  • Positive Releasing Mechanism Effectively disengages the catching tool from the wellbore.
  • Leak-Resistant Internal Seals Enables high circulating pressure without leak paths.
  • Canfield Thread Form Available for washpipe applications.
  • Size from 3-⅛ OD to 9 OD
  • The size can be modified according to customer specifications, in compliance with API standards.

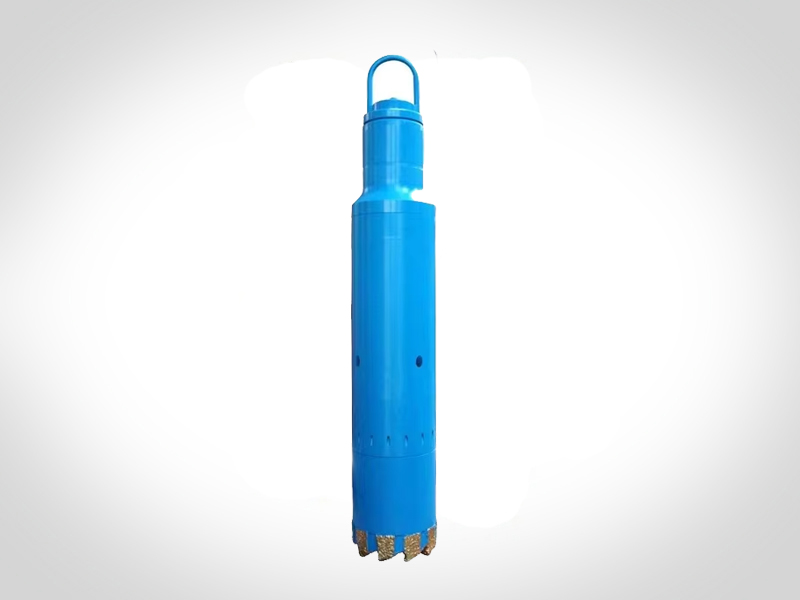

REVERSE CIRCULATING JUNK BASKET

  • Reverse Circulating Junk Basket (RCB) is a junk retrieval tool designed to remove all types of objects from the bottom of the well bore.
  • Size from 3-5/8inch to 15inch
  • The size can be modified according to customer specifications, in compliance with API standards.

BOOT BASKET

  • Boot Basket (Junk Sub) is an accessory tool used in milling or drilling operations.
  • It is designed to prevent cuttings that are too heavy to be circulated from settling to the bottom of the hole.
  • Size from - 3-11/16inch to 12-7/8inch
  • The size can be modified according to customer specifications, in compliance with API standards.

FISHING MAGNET

  • Fishing Magnet is a junk retrieval tool designed to effectively remove metal particles, shavings, and debris from the bottom of the wellbore.
  • Size from 1 inch to 22inch
  • The size can be modified according to customer specifications, in compliance with API standards.

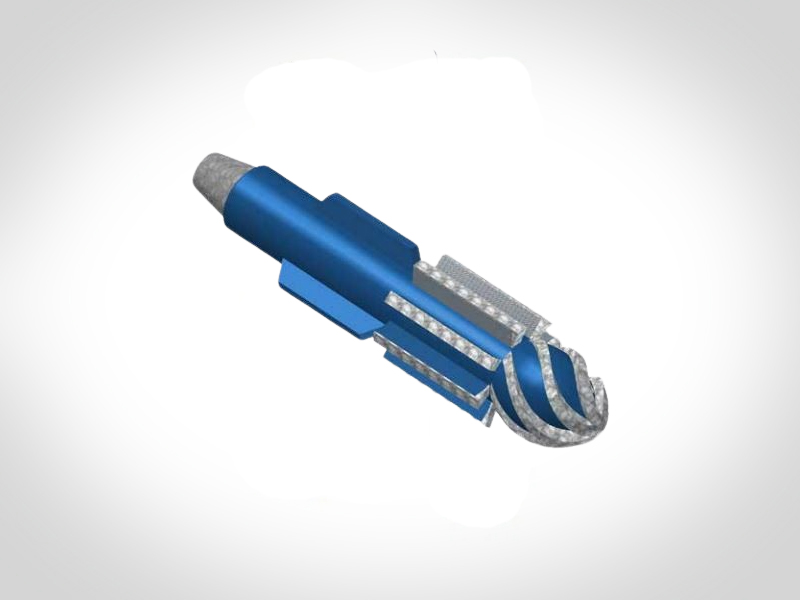

PILOT MILLS

  • Pilot Mills are commonly used to mill casing, liners, washover pipe, drill pipe, and tubing.
  • Available Sizes- Ranges from 3¼ inches to 17 inches with fishing necks from 3⅛ inches to 8 inches.

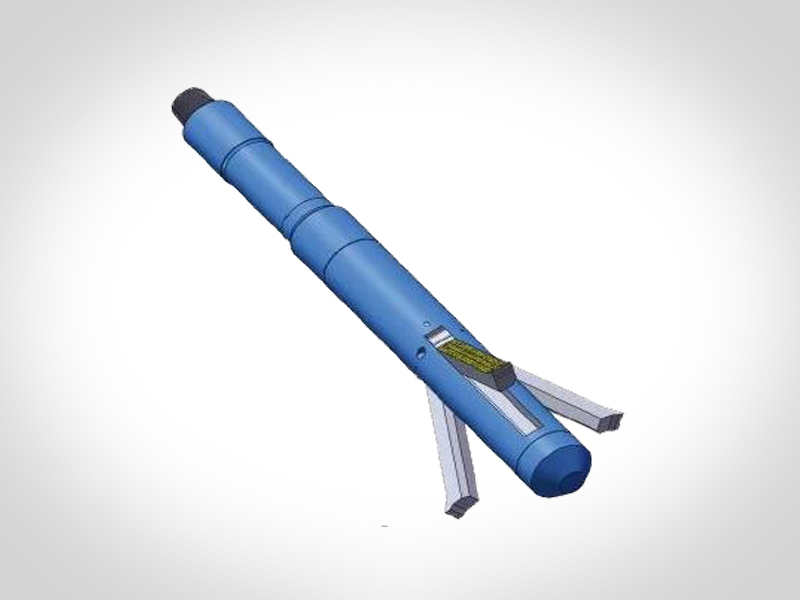

MECHANICAL INTERNAL CUTTER

  • Mechanical internal cutter is a tool which is used for cutting downhole fixed (or stuck) pipe from inner of casing, it can work at any place except joint and coupling.

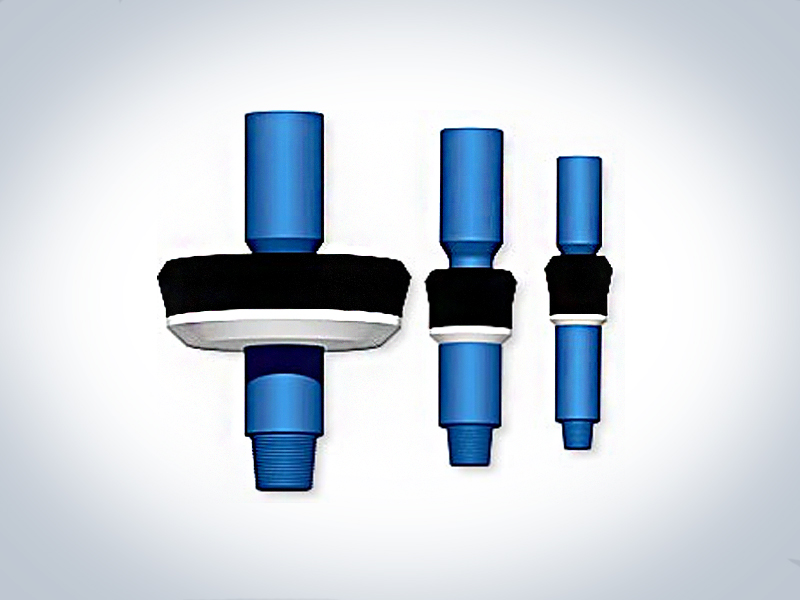

CUP TESTERS

  • Cup Testers are available in many sizes, and rated at 10 Ksi or 15 Ksi.
  • Cup Tester Assemblies are designed to be attached to the drill string and lowered into the casing beneath the wellhead to pressure test the blowout preventer stack and the wellhead.
  • Size from 4-1/2inch to 20inch with various casting weight range.
  • The size can be modified according to customer specifications, in compliance with API standards.

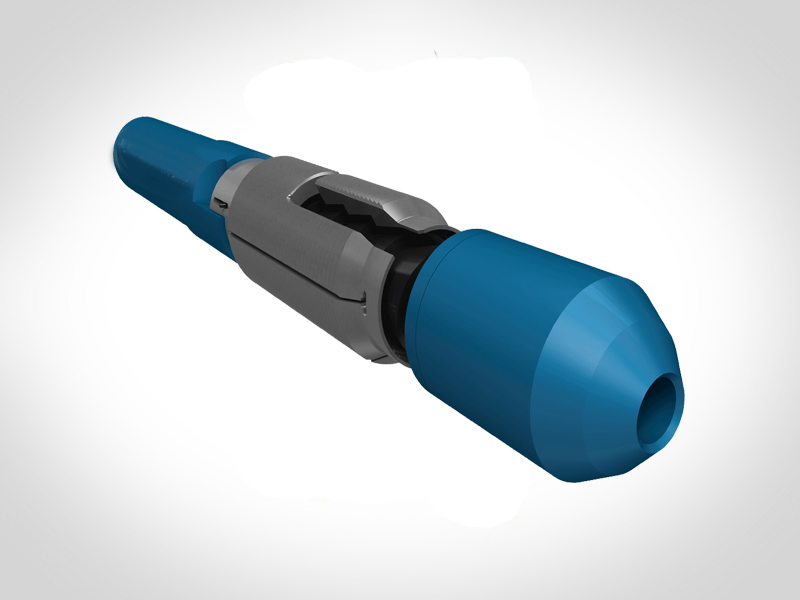

ITCO STANDARD SPEAR

  • The Itco-Type releasing spear is a superior fishing spear that ensures positive engagement with fish.
  • Wide Compatibility Internally engages and retrieves drill pipe, casing, tubing, or other obstructions
  • Size from OD 1-⅞ to OD 11-3/4
  • The size can be modified according to customer specifications, in compliance with API standards..

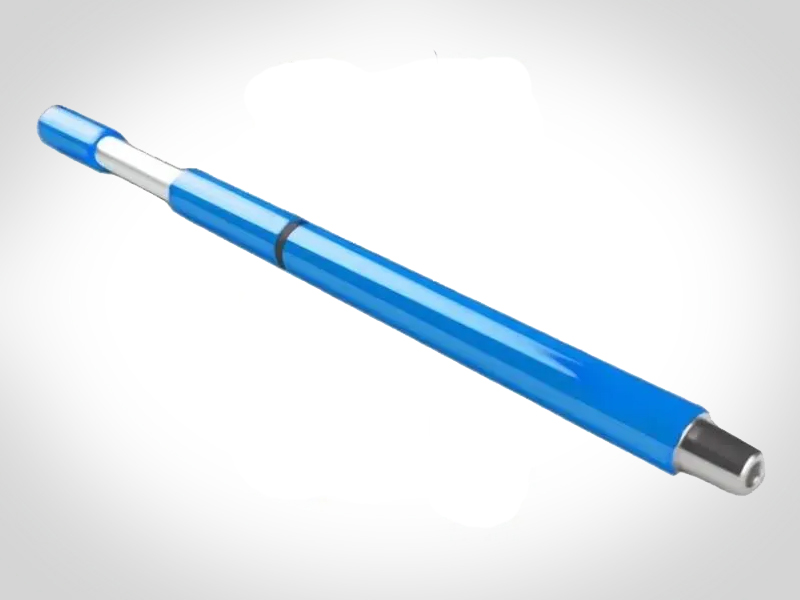

FISHING JAR / INTENSIFIER / BUMPER SUB

  • Fishing Jar is an easy-to-use accessory tool that assists in various operations such as fishing, testing, coring, reaming, and washover
  • Designed to be installed in the string above the fishing tool assembly,
  • Size from 3-⅛ inch to 8 inch
  • The size can be modified according to customer specifications, in compliance with API standards.

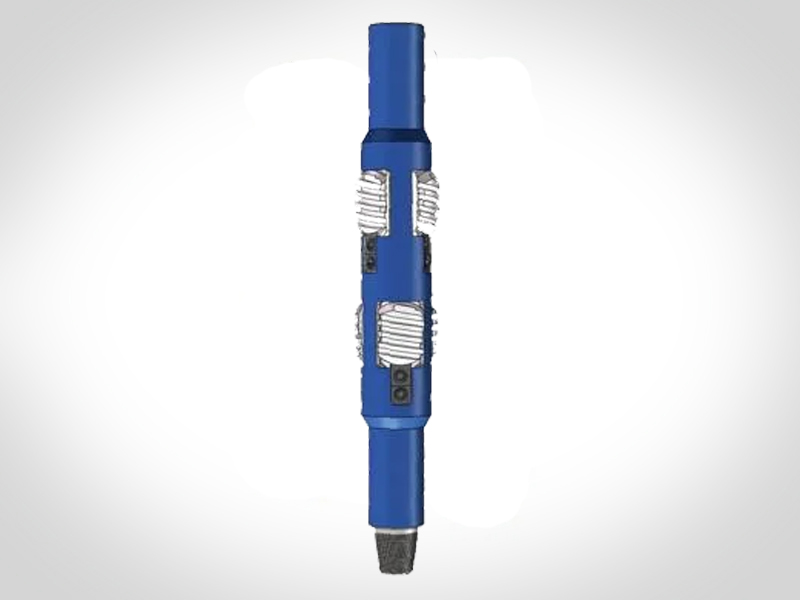

CASING SCRAPER

  • Casing Scraper is designed to remove scale, mudcake, cement sheath, embedded bullets, and other foreign material from the inside of the casing wall.
  • Maintaining a clean casing I.D.
  • Size from 4inch - 20 inch
  • The size can be modified according to customer specifications, in compliance with API standards

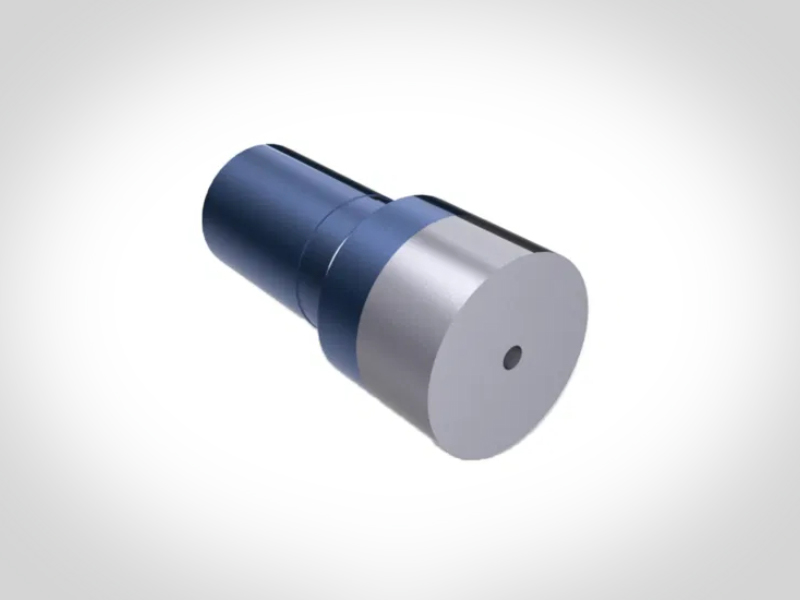

IMPRESSION BLOCK

  • Washout prevention sleeve
  • Easily refillable
  • External fish neck
  • Flat-bottom, conical, or other
  • Size from 2-37/4 inch to 20 inch
  • The size can be modified according to customer specifications, in compliance with API standards.
